Número de pieza:
10-214524-67s
NSN
Número de acciones nacionales:
TXT
Descripción:

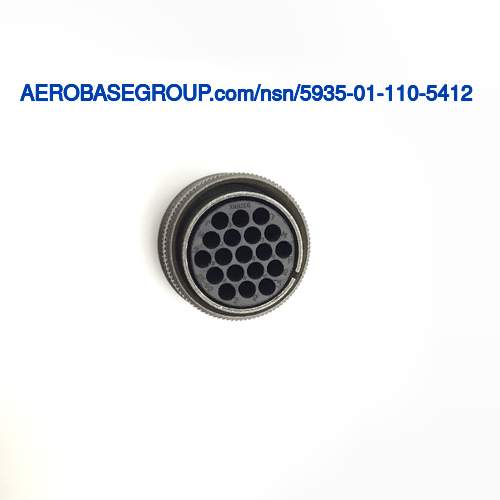

Electrical Plug Connector
Código de nombre del artículo:
01938
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2A and 2B
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the body.AAQL
Body Style:
Straight shape internal coupling
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.407 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
1.715 inches
MRC:
Indicates the type of threaded device included on the item.AFQR
Threaded Device Type:
Back shell and coupling facility
MRC:
The number of mating ends provided with the item which are designed to accommodate another connector.AFQW
Mating End Quantity:
1
MRC:
An indication of whether or not the contact(s) is removable.AFQZ
Contact Removability:
Nonremovable single mating end all contact groupings
MRC:
The means used to prevent mismating or cross plugging of contacts.AFRN
Polarization Method:
Keyway or multiple keyway
MRC:
The amount of clockwise displacement of the indexing radius of the insert from normal position,expressed in degrees.AFRP
Insert Position In Deg:
0.0
MRC:
The means used to secure a connector to its mating counterpart.AFRV
Connector Locking Method:
Internally threaded coupling ring
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.375 inches and 1.500 inches
MRC:
Indicates the location of the terminal/s/ on the item.CQTM
Terminal Location:
Back single mating end all contact groupings
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the contact surface(s) and cannot be wiped off.CQYH
Contact Surface Treatment:
Gold single mating end all contact groupings and silver single mating end all contact groupings
MRC:
Indicates the type of contact(s) included with the item.CXCL
Included Contact Type:
Round socket single mating end all contact groupings
MRC:
An indication of the precious material and its location in the item.PMLC
Precious Material And Location:
Contact surfaces gold and contact surfaces silver
MRC:
Identification of the precious material contained in the item.PRMT
Precious Material:
Gold and silver
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unef
