Número de pieza 07-5433-0009-01

Electrical Plug Connector
Disponibilidad de stock  Códigos de condición del producto

Número de pieza 07-5433-0009-01 está en stock en las siguientes cantidades y condiciones.

  • NE: 24
  • AR: 1
  • NS: 16

Nota: La disponibilidad de este artículo se actualizó por última vez 09/26/2023 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

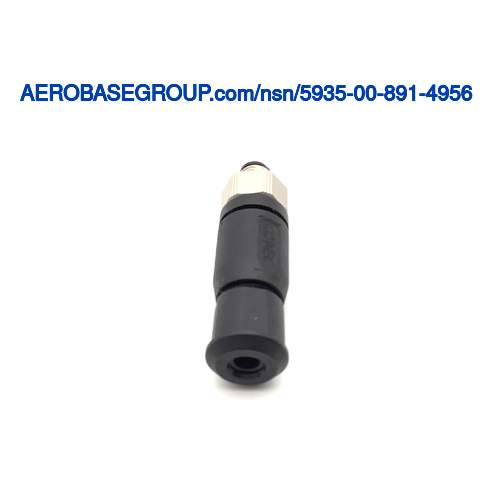

Imagen del número de acciones nacionales  5935-00-891-4956

El precio histórico de este producto está entre 41.14 and 55.539 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
07-5433-0009-01
Desmilitarización:
No
Vigencia:
N/A
Unidad de medida:
1 EA
NIIN:
008914956
NSN
Número de acciones nacionales:
5935-00-891-4956 5935008914956
TXT
Descripción:
Electrical Plug Connector
INC
INC
Código de nombre del artículo:
01938
MRC:
The number of mating ends provided with the item which are designed to accommodate another connector.AFQW
Mating End Quantity:
1
MRC:
An indication of whether or not the contact(s) is removable.AFQZ
Contact Removability:
Nonremovable single mating end single contact grouping
MRC:
The maximum current which the contact may continuously carry without degradation or destruction,expressed in amperes.AFRC
Contact Maximum Current Rating In Amps:
7.0 single mating end single contact grouping
MRC:
Indicates the location of the terminal/s/ on the item.CQTM
Terminal Location:
Back single mating end single contact grouping
MRC:
The chemical compound or mechanical mixture properties of which the contact is fabricated.CQTZ
Contact Material:
Copper alloy single mating end single contact grouping
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the contact surface(s) and cannot be wiped off.CQYH
Contact Surface Treatment:
Gold single mating end single contact grouping
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the contact material.CSGF
Contact Material Specification:
QQ-B-330, comp a federal specification single material response single mating end single contact grouping
MRC:
The number of contacts included with the item which provides electrical connection.CXCG
Included Contact Quantity:
4 single mating end single contact grouping
MRC:
Indicates the type of contact(s) included with the item.CXCL
Included Contact Type:
Leaf spring single mating end single contact grouping
MRC:
An indication of the precious material and its location in the item.PMLC
Precious Material And Location:
Contact surfaces gold
MRC:
An indication of the precious material contained in the item,and the amount per a measurement scale.PMWT
Precious Material And Weight:
0.004 gold grains troy
MRC:
Identification of the precious material contained in the item.PRMT
Precious Material:
Gold
