Número de pieza:
03aa158-10
Unidad de medida:
No qup EA
NSN
Número de acciones nacionales:
TXT
Descripción:

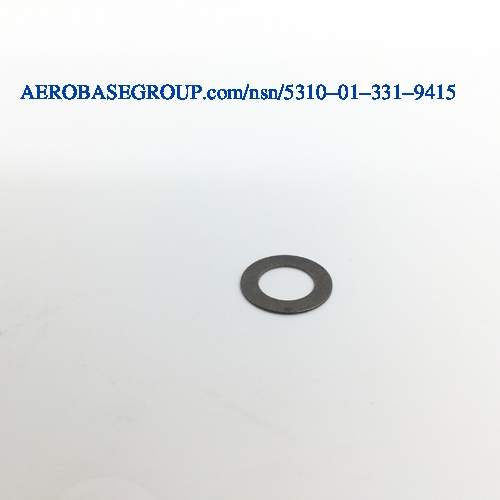

Flat Washer
Código de nombre del artículo:
13393
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Rectangular
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.313 inches and 0.316 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the peripheral shape of the item.ABMW
Edge Shape:
Round
MRC:
The style designation indicating the configuration that most nearly corresponds to the shape of the center hole.ABMX
Center Hole Shape:
1 round
MRC:
A measurement of the smallest dimension of an item,in distinction from length or width.ABNM
Thickness:
Between 0.0135 inches and 0.0185 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
Between 0.516 inches and 0.520 inches
MRC:
The maximum rated load in tension applied in a longitudinal direction,per unit of cross-sectional area,that the material can withstand without rupture.CQBC
Min. Tensile Strength (psi):
125000 pounds per square inch
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
63.0 microinches all surfaces
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy uns R56400
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 4911 assn standard single material response and ams 4928 assn standard single material response
