Número de pieza:
02-099016
Información de la pieza
Weapon system essential
NSN
Número de acciones nacionales:
TXT
Descripción:

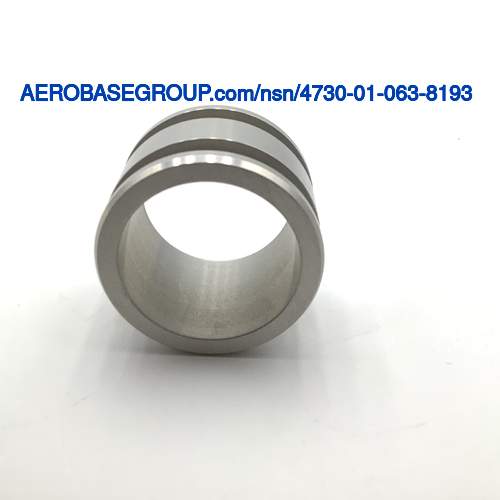

Tube Fitting Brazing Ferrule
Código de nombre del artículo:
18024
MRC:
Indicates whether or not a ferrous alloy object has been subjected to a process whereby the outer portion is made substantially harder than the inner portion or core.AASG
Casehardening Indicator:
Not casehardened
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
0.968 inches
MRC:
A numeric value that reflects the hardness of a metallic item when used in conjunction with a hardness rating scale.AETC
Metallic Hardness Rating:
Not rated
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Submarine hydraulic systems
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
0.156 inches
MRC:
The length of a straight line which passes through the center of a flange,and terminates at the outside circumference.AHTC
Flange Outside Diameter:
1.828 inches
MRC:
The length of a straight line which passes through the center of the sleeve,with terminated points on the outside circumference.ARYW
Sleeve Outside Diameter:
1.781 inches
MRC:
The length of a straight line which passes through the center of the hose or tube for which the item is designed,and terminates at the outside circumference.CPMS
Hose/tube Outside Diameter For Which Designed:
1.625 inches
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Feat
MRC:
The element,compound,or mixture of which an item is fabricated,excluding any surface treatment.MATL
Material:
Aluminum alloy QQ-A-225/8, alloy 6061, T651 or aluminum alloy QQ-A-200/8, alloy 6061, T6510 or aluminum alloy QQ-A-250/11, alloy 6061
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 6061 or aluminum alloy 6061 or aluminum alloy 6061
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Gasket seal
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off.plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects a surface.SURF
Surface Treatment:
Anodized MIL-A-8625, type 1
