Número de pieza 000-8004-997

Radio Frequency Cable
Descripción

Cable

Disponibilidad de stock  Códigos de condición del producto

Número de pieza 000-8004-997 está en stock en las siguientes cantidades y condiciones.

  • NE: 275
  • NS: 39
  • SV: 9

Nota: La disponibilidad de este artículo se actualizó por última vez 05/08/2025 y puede haber cambiado desde entonces. Solicite una cotización para conocer los precios y la disponibilidad actualizados.

Precios y disponibilidad

Envíe este formulario para conocer los precios actuales y la disponibilidad de esta NSN.
Número de pieza:
Cantidad:
Dirección de correo electrónico:
Teléfono:
Referencia:
Compañía:
Nombre:

No compartimos ni vendemos su información a nadie.
Privacidad | Letra chica

All major credit cards accepted as well as gov. p-cards

Imágenes

Imágenes de referencia de esta pieza

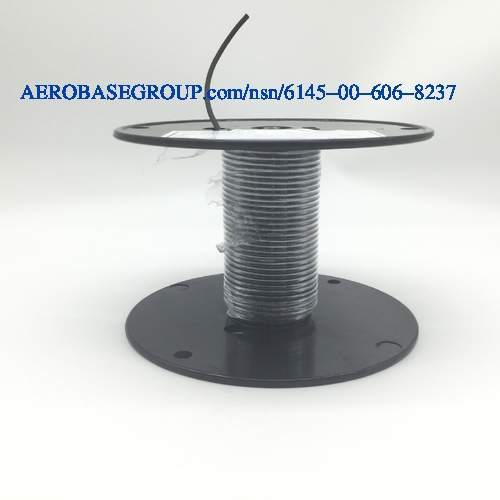

Imagen del número de acciones nacionales 6145-00-606-8237

El precio histórico de este producto está entre 0.4 and 0.54 USD. Dependiendo de la cantidad, disponibilidad, condición, plazo de entrega y posible interrupción de un artículo, no podemos garantizar el precio hasta que le proporcionemos un presupuesto actualizado.

Número de pieza
Desmilitarización
Vigencia
UOM
NIIN
Número de pieza:
000-8004-997
Desmilitarización:
Yes - DEMIL/MLI
Vigencia:
N/A
Unidad de medida:
* special requirements. FT
NIIN:
006068237
NSN
Número de acciones nacionales:
6145-00-606-8237 6145006068237
TXT
Descripción:
Radio Frequency Cable
INC
INC
Código de nombre del artículo:
00779
INC
COM
Conformidad:
* ITAR Controlled
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Round
MRC:
A measure of the opposition to the flow of electrical current.AAPP
Electrical Resistance:
50.0 ohms impedance
MRC:
The length of a straight line which passes through the center of a cross section,and terminates at the outside circumference.ADVL
Cross Section Outside Diameter:
0.110 inches
MRC:
The number of electrical conductors included on the item.AMQN
Conductor Quantity:
1
MRC:
The property of a system of conductors and dielectrics which permits the storage of electricity when potential difference exists between the conductors,expressed in picofarads.AXGH
Capacitance In Picofarads:
32.2 per foot
MRC:
The number of strands per conductor.BLNZ
Strand Quantity Per Conductor:
7 single conductor
MRC:
The fabricated form of the conductor.CXCW
Conductor Form:
Stranded single conductor
MRC:
The designation used to describe the round stranded or round solid conductor size.CXDC
Round Conductor Size:
26 awg single conductor
MRC:
The american wire gage size of the individual strands of wire used in each stranded conductor.CXDG
Strand Awg Size Per Conductor:
34 single conductor
MRC:
The arrangement and number of arrangements of the conductors.CXDQ
Conductor Arrangement And Quantity:
1 coaxial
MRC:
The maximum sustained voltage that can be safely applied to the item without risking failure or damage.CXFK
Voltage Rating:
1100.0 root mean square (rms) operating voltage single conductor
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
Black 3RD position jacket single conductor
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper 2ND position shield braid metallic single conductor
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyvinyl chloride 3RD position jacket single conductor
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyethylene 1ST position primary insulation single conductor
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel core conductor single conductor
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Copper core conductor single conductor
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Tin 2ND position shield braid metallic single conductor
