Número de pieza:

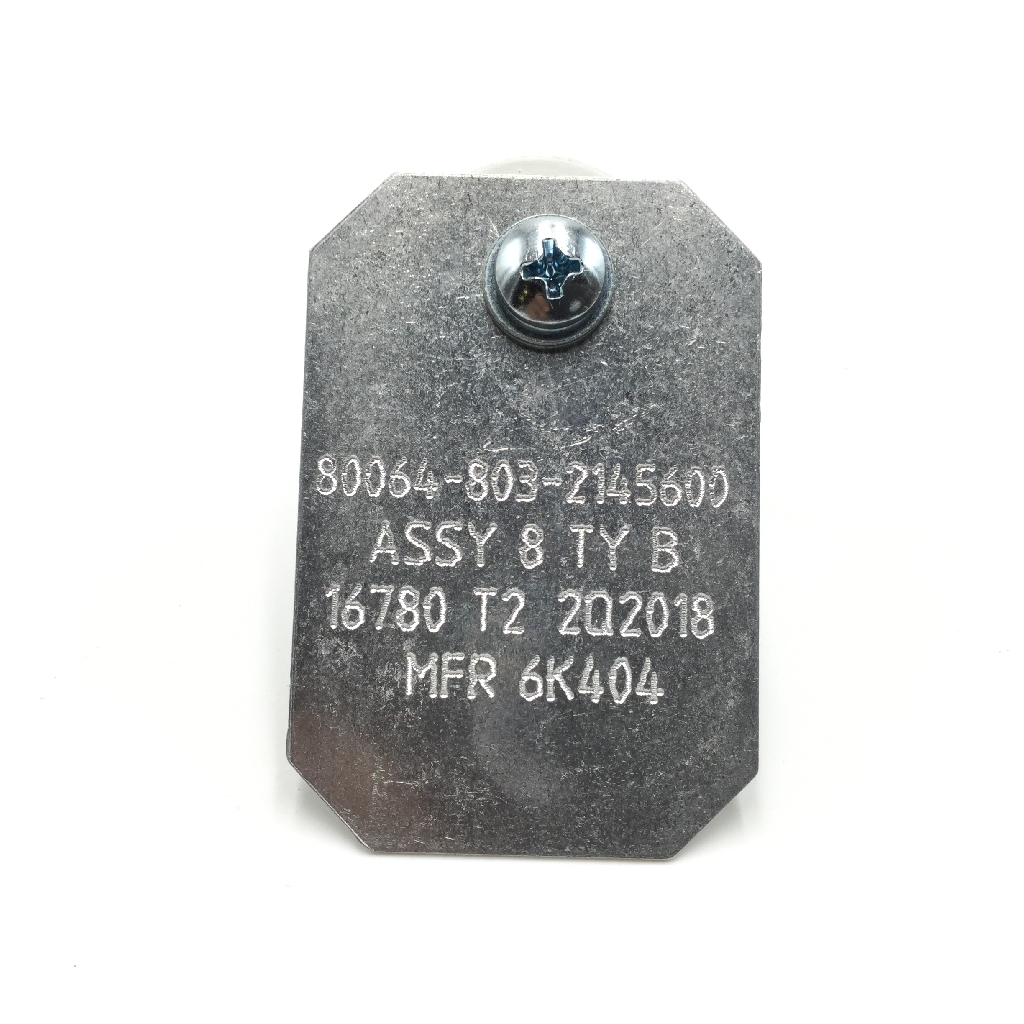

2145600assy8typeb
NSN
Número de acciones nacionales:
TXT
Descripción:

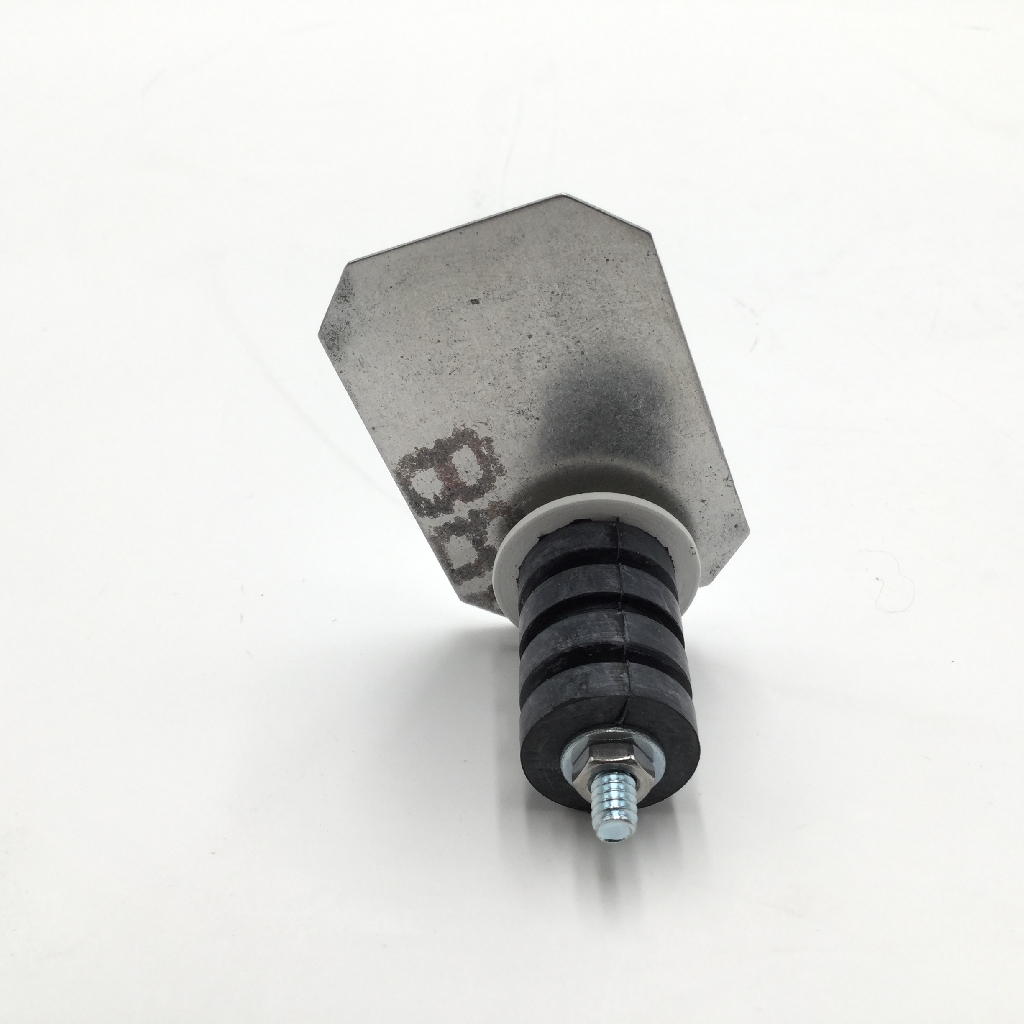

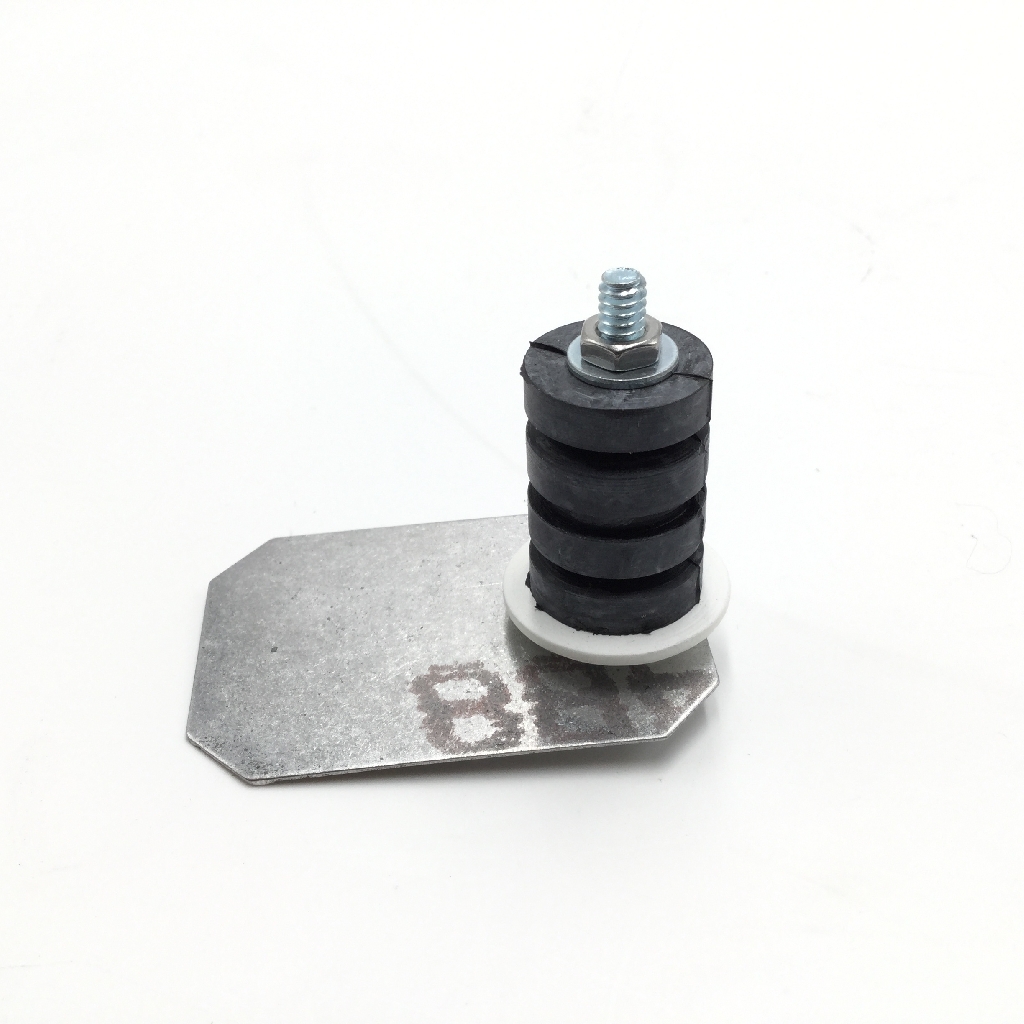

Weapon System Resilient Mount
Código de nombre del artículo:
53589
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
0.313 inches
MRC:
A numeric value that reflects the hardness of a nonmetallic item when used in conjunction with a hardness rating scale.AASF
Unable To Decode:
Unable to decode and unable to decode
MRC:
A measurement of the smallest dimension of a flange,in distinction from length or width.ABKU
Flange Thickness:
0.188 inches
Distance From Flange To End:
0.813 inches
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
1.188 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel inner bushing
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel washer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
MIL-S-20166 military specification single material response inner bushing or MIL-S-22698 military specification single material response inner bushing or MIL-S-24113 military specification single material response inner bushing or astm A36 assn standard single material response inner bushing or astm A537 assn standard single material response inner bushing or astm A515, grade 70 assn standard single material response inner bushing or astm A516, grade 70 assn standard single material response inner bushing or astm A675, grade 70 assn standard single material response inner bushing
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
MIL-S-20166 military specification single material response washer or MIL-S-22698 military specification single material response washer or MIL-S-24113 military specification single material response washer or astm A36 assn standard single material response washer or astm A537 assn standard single material response washer or astm A515, grade 70 assn standard single material response washer or astm A516, grade 70 assn standard single material response washer or astm A675, grade 70 assn standard single material response washer
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Paint inner bushing
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Paint
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
MIL-P-23236, type 1, class 1 military specification single treatment response inner bushing
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
MIL-P-23236, type 1, class 1 or 2 military specification single treatment response
